Axidian CertiFlow Management Console

Before you start working with AirCards, open the Axidian CertiFlow Management Console→Configuration and follow these steps:

  1. Add a license for Axidian AirCard Enterprise.
  2. Add the smart card type.
  3. Configure privileges to work with AirCard smart cards.

Add Axidian AirCard Enterprise license​

To upload a new license, click Add License, specify the license file, and click Add.

To remove the license from the system, select it from the list and click . Click Delete.

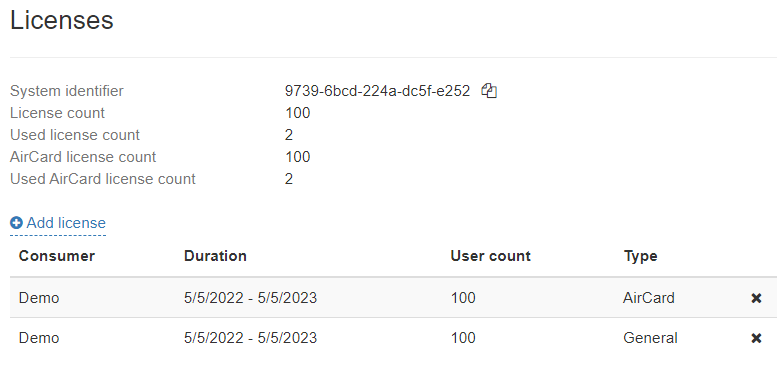

How to check license information

Add the smart card type​

  1. Open the Card types tab in Configuration and click Add card type.
  2. Upload the AirCard.xml card type file from ..\Misc\CardTypes folder in Axidian CertiFlow installation package. If you need to replace the card type file, check the Replace existing option.
  3. Click Add.

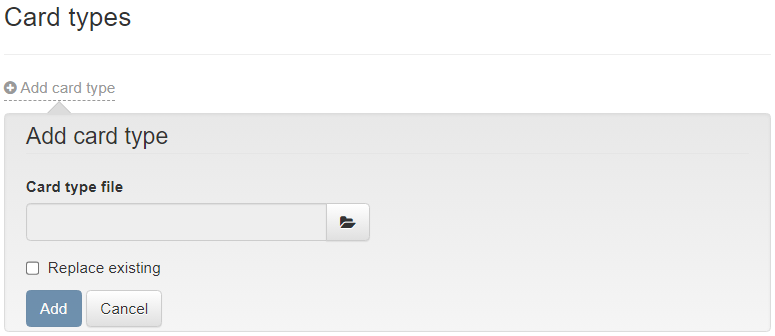

How to add a card type

The default card type file contains the PIN values for administrator (87654321) and user (12345678). You can change the PINs after you add the card type file in Axidian CertiFlow. Click to edit, click to view the PINs.

Here are the additional options available in the Edit card type window:

  • Initialize card at adding. If the option is enabled:

    • Smart card is cleared.
    • Smart card name is set to Empty.
    • Administrator PIN is changed to random (only available in Axidian CertiFlow) or to the PIN specified in the Set not random administrator PIN option.
    • Number of administrator PIN input attempts before locking is set to 3.
    • User PIN, its minimum length and the number of input attempts are set according to the values that you specified in the smart card type file.

  • Set not random administrator PIN. If the option is enabled, you can enter the administrator PIN to be set when you add the card in the AirCard system. If the option is disabled, a random PIN is set.

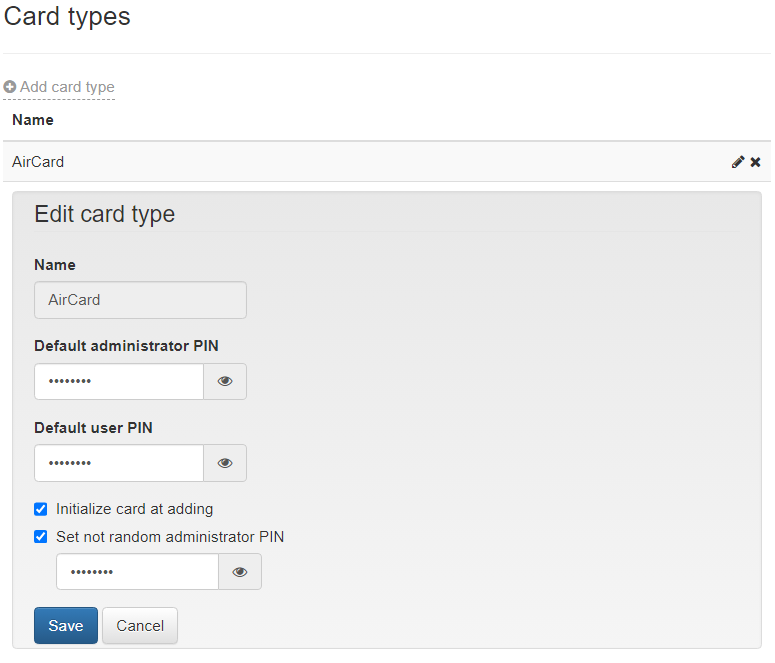

How to edit a card type

To delete a card type, select it from the list and click .

caution

You can only delete a card type if there are no cards of this type in Axidian CertiFlow.

Configure privileges to use AirCard smart cards​

To configure privileges for Axidian CertiFlow users to manage AirCard smart cards, go to Configuration→Roles. Set the following privileges for the roles members:

  • Change AirCard bindings
  • Removing AirCard

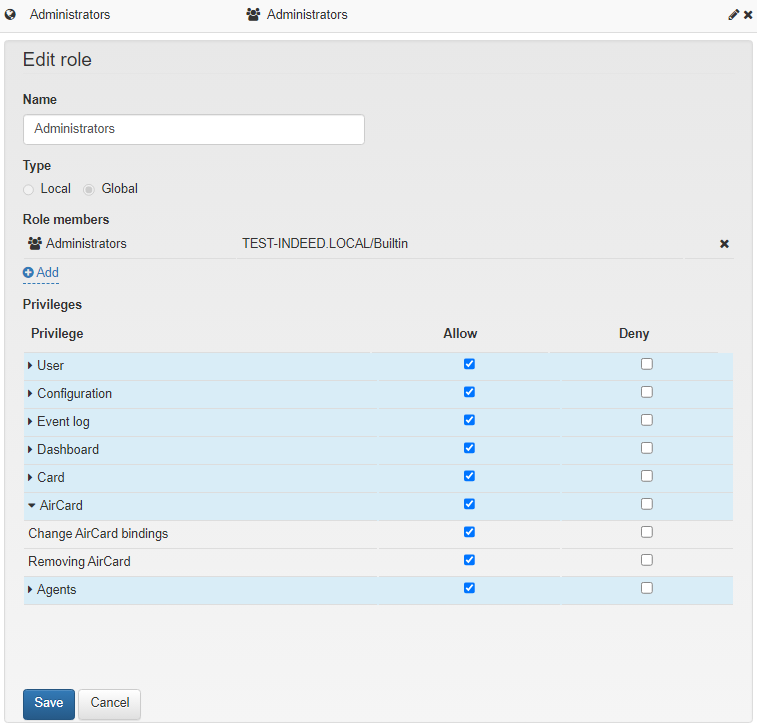

Edit a role
